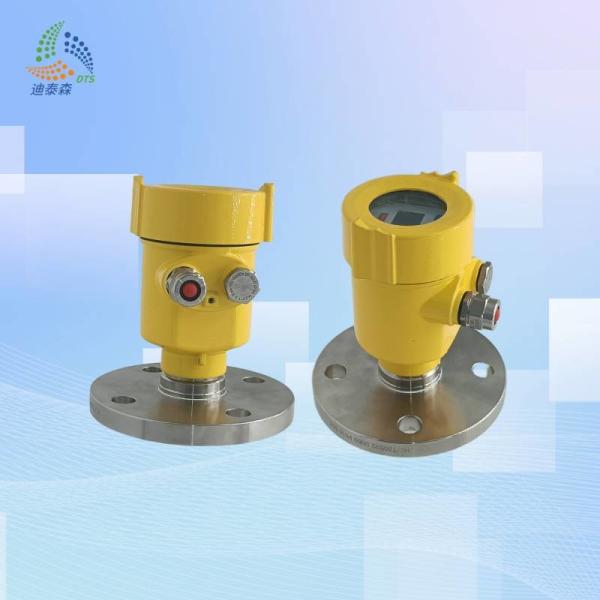

30m Corrosive And Pressured 80GHz Non Contact Radar Level Transmitter Sensor Meter Gauge High Precision
Product Description:
In continuous non-contact level measurement with radar, the sensor sends microwave signals towards the medium from above. The surface of the medium reflects the signals back in the direction of the sensor. Using the received microwave signals, the sensor determines the distance to the product surface and calculates the level from it.
Liquids and solids are commonly measured with this measuring technique.
Features:
- 80GHz FMCW technology
False echo suppression option
Narrow beam, small blind zone and accurate measurement
Unaffected by temperature fluctuations
Resistant to dirt and buildup
Measurement under vacuum and high pressure
Small size, easy to use, less maintenance -
-
-
Technical Parameters:
| Model | DTS-RD-83 |
| Application | Corrosive and Pressured Liquid |
| Measuring Range | 30m |
| Frequency | 80GHz |
| Accuracy | ±2mm |
| Resolution | 1mm |
| Process Temperature | -40℃~+120℃ |
| Process pressure | (-0.1~2.5)MPa |
| Process Connection | Flange from DN50
|
| Protection Class | IP67 |
| Signal output | 4…20mA/HART; RS485/MODBUS |
| Connection | Bluetooth/NB-iot/4G |
| Material | Stainless Steel+PTFE |
| Power Supply | Two Wires DC24±6V; Four Wires AC220V |
Applications:
The 80G Radar Level Transmitter is an advanced microwave level sensor that has a measuring range of 0.15~30m. It uses a unique 80GHz measuring frequency and radar measuring principle to precisely measure the level of various liquids and solids in tanks or other containers. It is suitable for a wide range of applications such as monitoring water levels in reservoirs and rivers, measuring the height of oil in tanks, and detecting the level of materials in silos.
Packing and Shipping:
The 80G Radar Level Meter is packaged in a sturdy cardboard box with the following dimensions:
Length: 40 cm
Width: 30 cm
Height: 30 cm
The 80G Radar Level Meter is shipped with all the necessary components and accessories, as well as a user manual.
The package is shipped by air freight, usually with a carrier such as DHL or FedEx.
